产品类型：Class D Amplifier with DSP
频率响应：20Hz-20kHz (+0/-0.25dB)
功放技术：UMAC Class D - Full Bandwidth PWM Modulator With Ultra-Low Distortion
功放通道数：4 Channels Low Impedance (Lz)/2 | 2 Channels High Impedance (Hz)
功放功率 - 立体声 8Ω：4×125W
功放功率 - 立体声 4Ω：4×125W
功放功率 - 100V：2×250W
功放功率 - 70V：2×250W
扬声器输出：4Ω-16Ω | 70V/100V
分区输出：4 Zones Output
总谐波失真 + 噪声：<0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power)
信噪比：>100dB (A-weighted, 20Hz-20kHz, 8Ω load)
输出电压：70Vp-p/100Vpp (Unloaded) | Bridged 140Vp-p/280Vpp (Unloaded)
DSP 技术：Ultimate DSP with Wi-Fi and Ethernet Connection
DSP 可调参数：Filters: PEQ, LR, hi-lo shelving, all-pass, band-pass, hi-pass, lo-pass | Limiters: RMS Voltage, Peak Voltage | GPIO Functions | Routing
DSP 预设：Allows to Store and Load Individual Presets as well as Preset Libraries
延迟调节：100ms (34.3ms per Output)
控制类型：Controlled Via Webpage - Compatible with Desktop, Tablet and Mobile Phone (Wireless/Cable via RJ45)
无线连接系统：Wireless as a Wi-Fi Access Point (WAP) or Wi-Fi Client

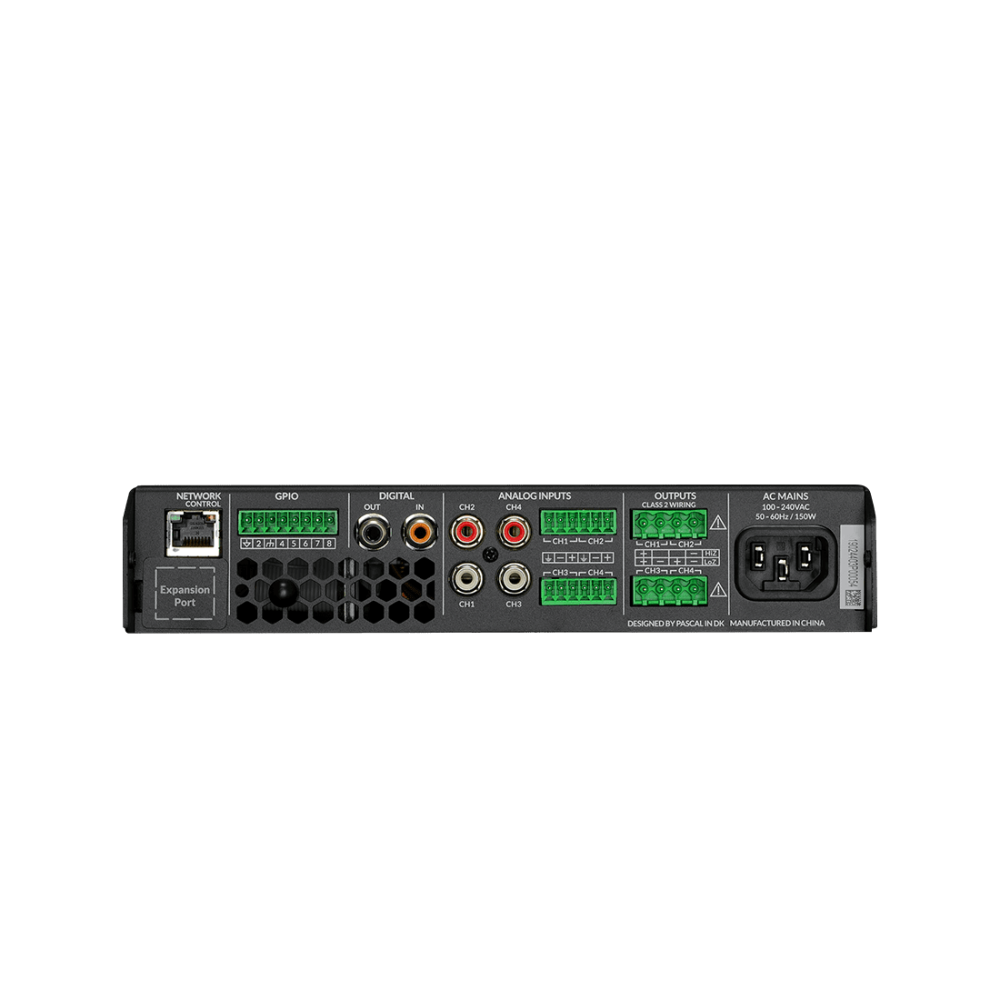

音频信号输入：4×Analog Unbalanced Inputs | 4×Analog Balanced Inputs | Stereo S/PDIF
输入接口：4×RCA | 2×3.5mm Phoenix Type | 1×RCA | 8×GPIO
音频信号输出：Stereo S/PDIF Outputs
输出接口：1×RCA | 8×GPIO
扬声器输出接口：2×4-Pole 5mm Phoenix Type
保护功能：Short Circuit, DC, Undervoltage, Temperature and Overload Protection
工作温度范围：0℃-40℃
散热方式：Speed Controlled Fan
电源：URC (Universal Mains Switch Mode Power Supply (SMPS) with Power Factor Correction (PFC) and Standby Converter)
电源输入：AC 100V-240V/50Hz/60Hz
电源接口：Standard IEC socket
功耗：150W
特殊功能：GPIO Functions: Standby, Mute, Volume Control, Trigger IN, Trigger OUT
尺寸（宽 × 高 × 深）：44×220×390mm (1.7×8.7×15.4 in)
安装方式：1U 19" Rack | Wall/Desktop Mount (Necessary Accessories Not Included)
净重：2.8kg (6.2 lbs)
运输重量：3.5kg (7.7 lbs)
配件：19" Rack Mount Kit | Wall/Desktop Mount Kit (not included)
